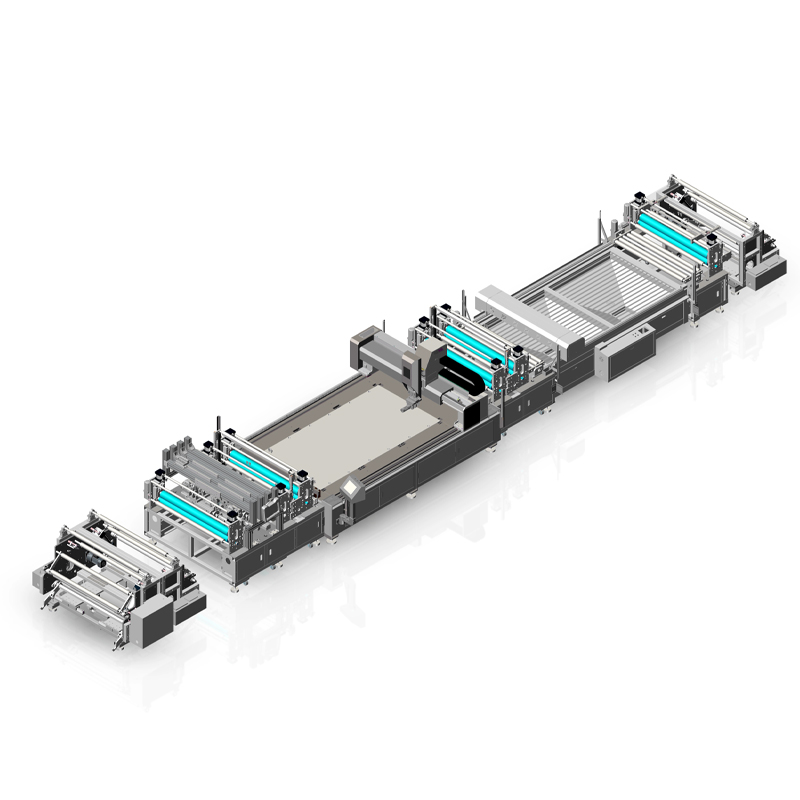

Medical heating blanket production line

The medical inflatable heating blanket manufacturing machine is fully automated, from two rolls of raw materials to finished product winding. It adopts ultrasonic sewing technology, with multiple sets of ultrasonic quilting technology at the front end and PLC control of the welding position. It uses XY axis ultrasonic sewing technology to sew the product before laser cutting. This machine can realize customized sewing and cutting of various products, achieving multiple uses in one machine.

TEL MSG

Product Introduction

The medical inflatable heating blanket manufacturing machine is fully automated, from two rolls of raw materials to finished product winding. It adopts ultrasonic sewing technology, with multiple sets of ultrasonic quilting technology at the front end and PLC control of the welding position. It uses XY axis ultrasonic sewing technology to sew the product before laser cutting. This machine can realize customized sewing and cutting of various products, achieving multiple uses in one machine.

Product Parameters

ParameterValue
Speed30pcs/Hour
Output Power15Kw
Power SupplyAC220V 50/60Hz
Air Pressure0.6-0.8 mpa
Weight4000KG
Dimensions

13700*2300*1600mm

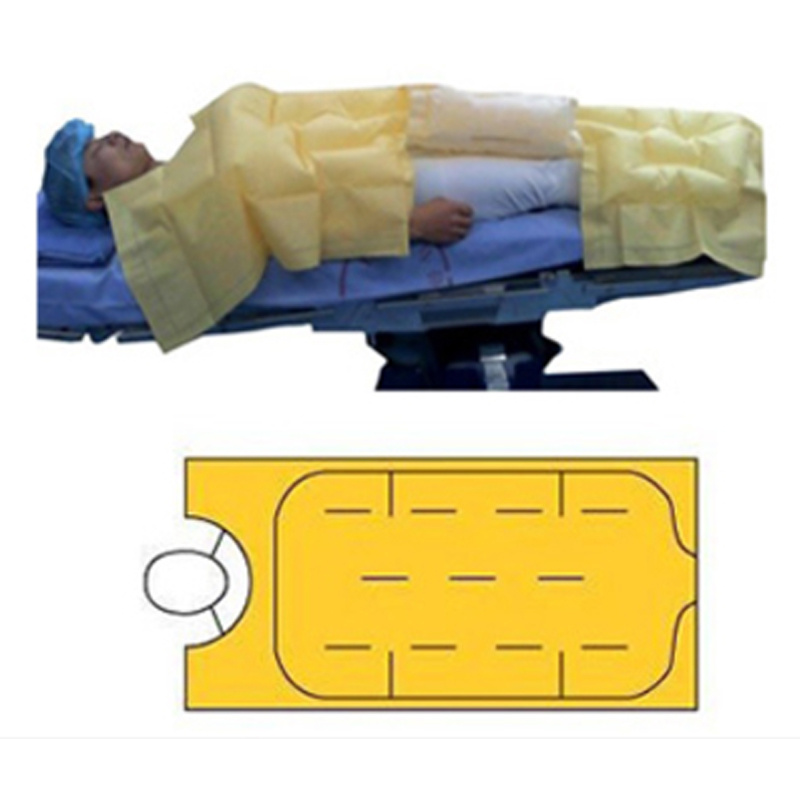

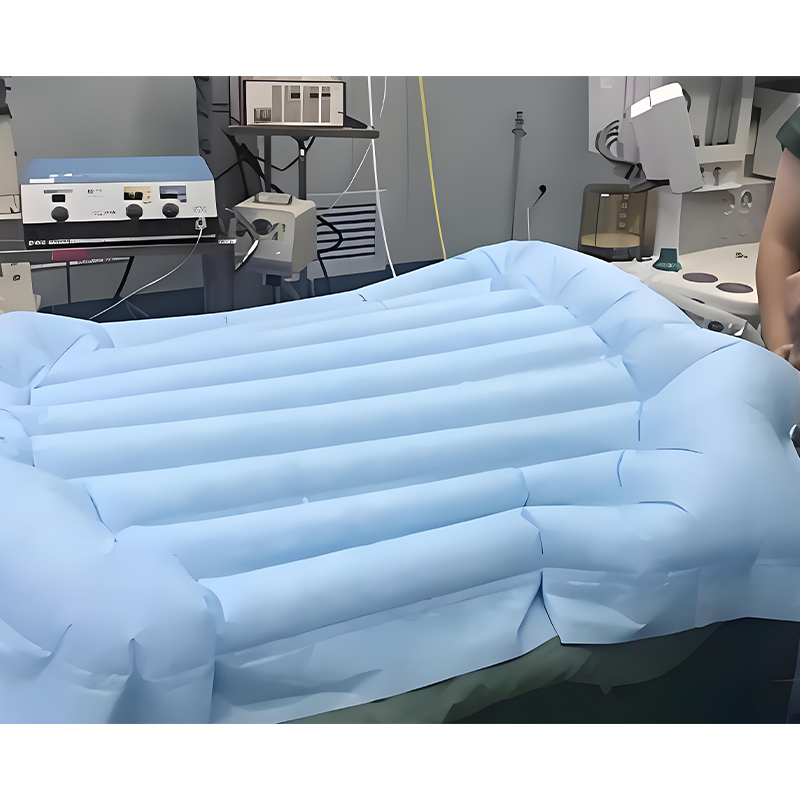

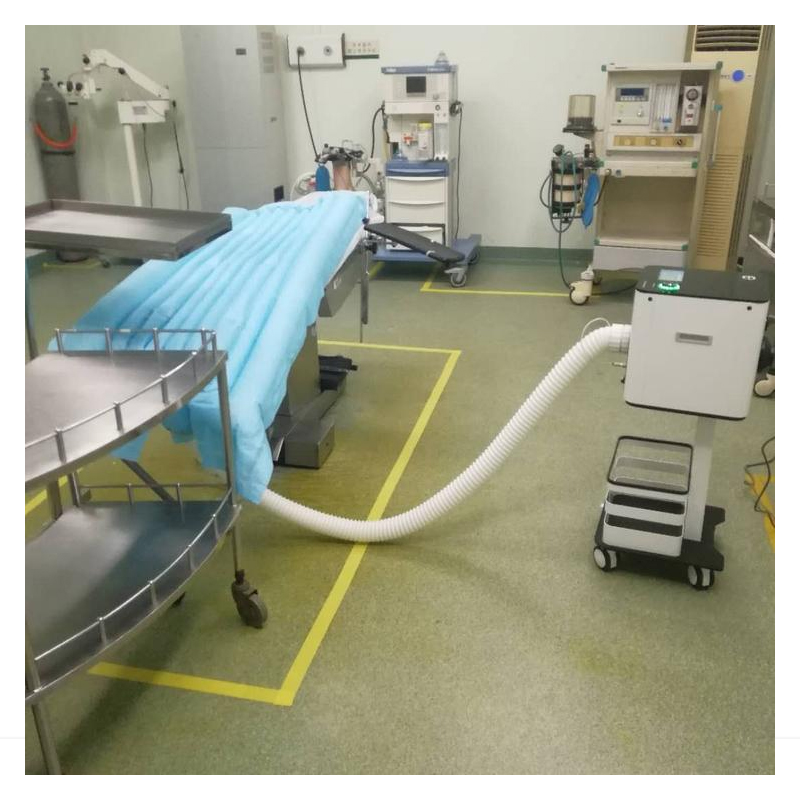

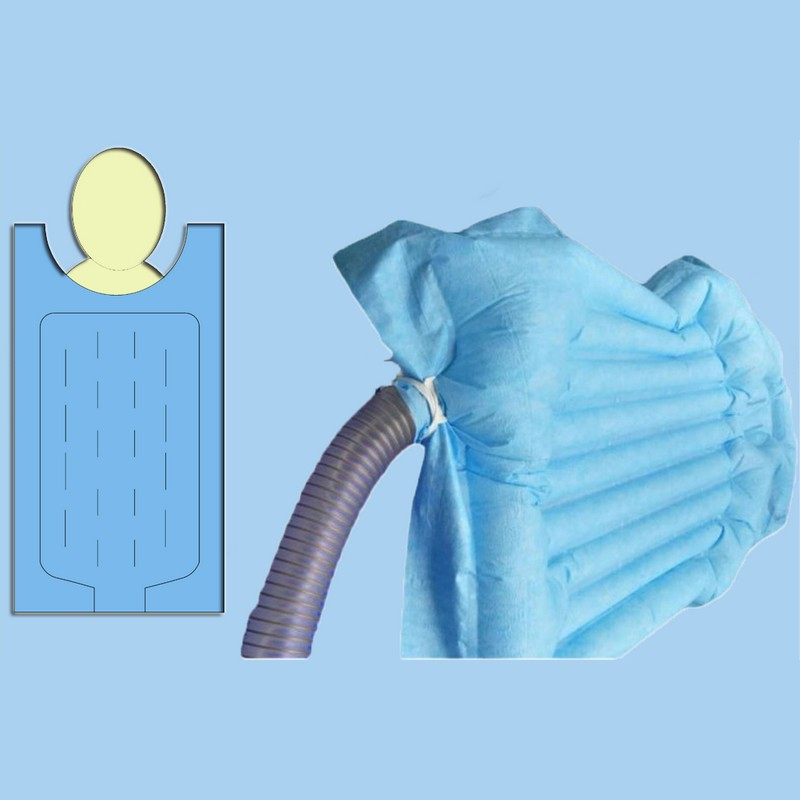

Sample photos

  • Medical heating blanket production line
  • Medical heating blanket production line
  • Medical heating blanket production line
  • Medical heating blanket production line

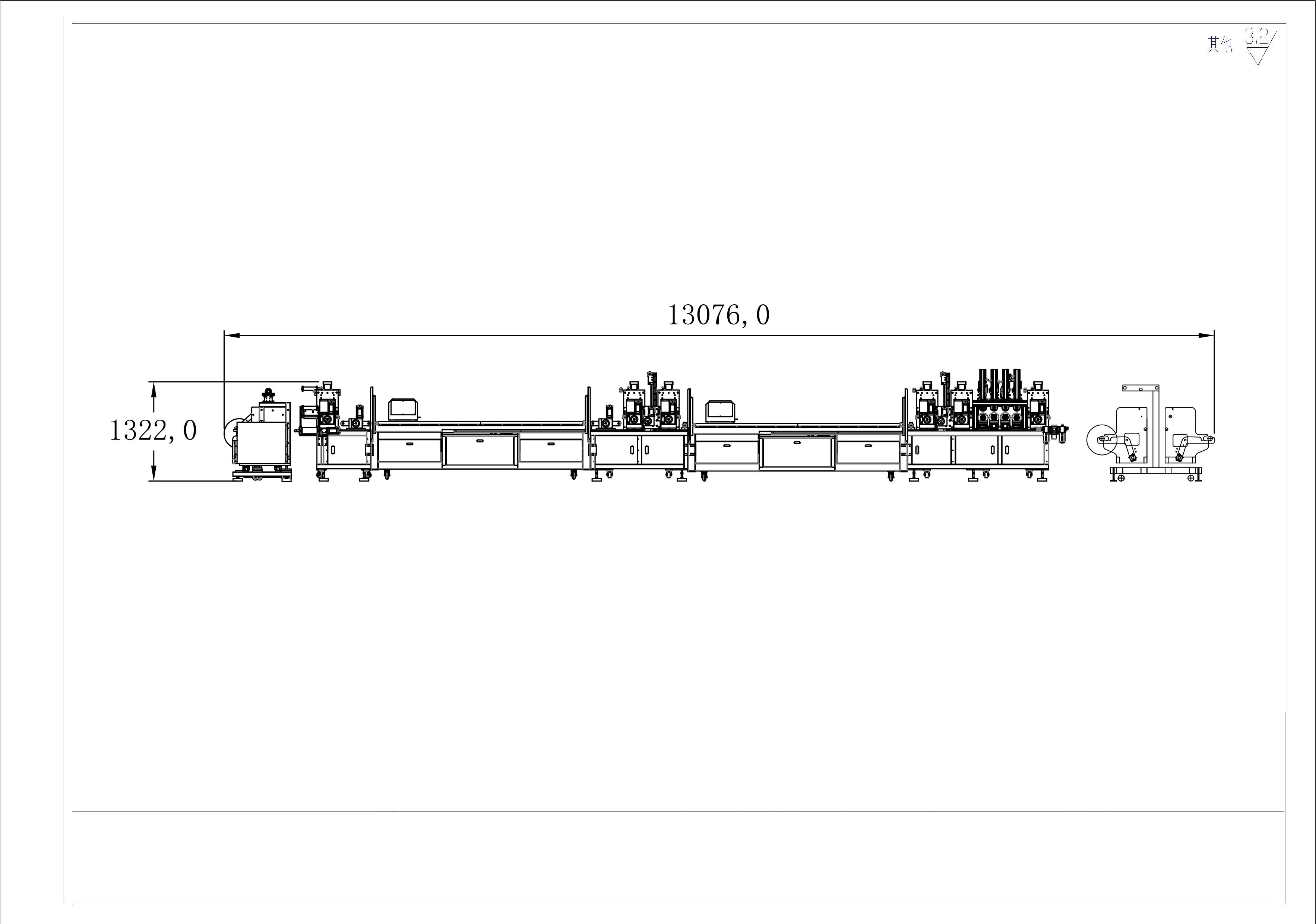

Product Drawings

Medical heating blanket production line
