Product Introduction

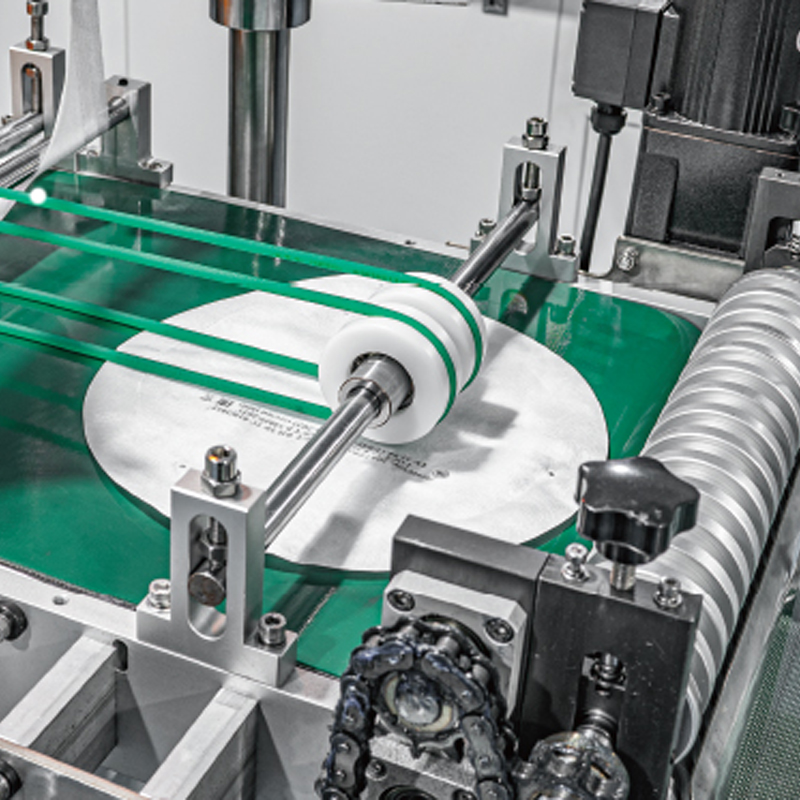

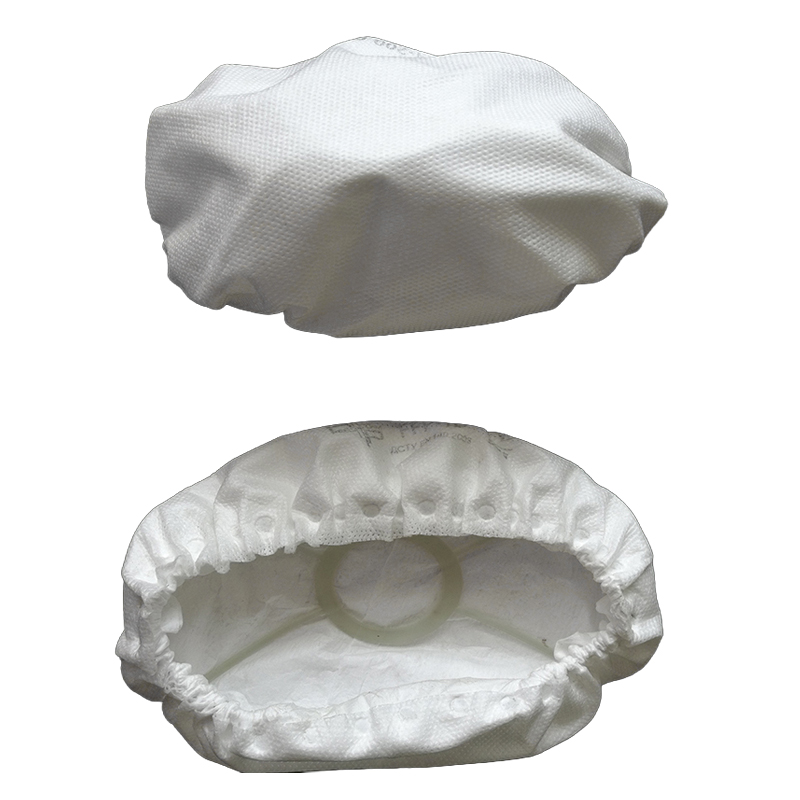

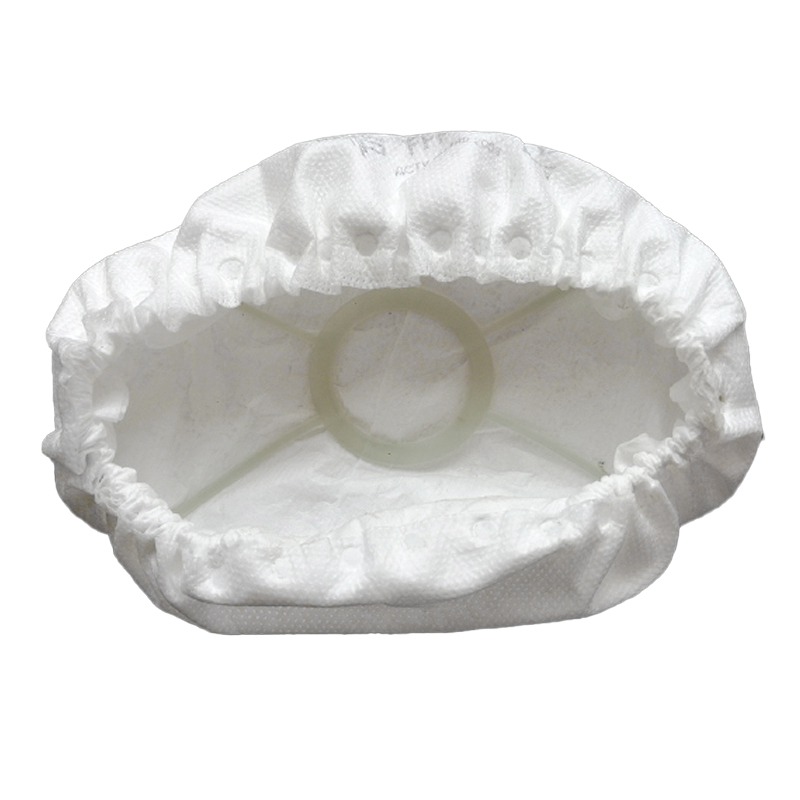

The pancake mask machine is an automatic machine used for the feeding, cutting, Logo printing, welding, punching and blade forming of round mask sheets.The entire equipment is fully automated in its process and can produce various types of round mask-like products according to the shape of the molds.The raw materials selected based on product requirements can be used to produce round mask masks that meet different standards. The production process is fully automated. Moreover, customized automatic production lines can be provided to meet various customer needs.
Production process flow:
Raw material feeding→Pulling the material→Activated carbon fabric cutting→Pulling the material→Cut small circles→Automatic Logo printing→Pulling the material→Welding →Pulling the material→Cutting holes→Pulling the material→Cutting forming→Discharge conveying→Finished product stack→Finished product discharge
Product Parameters
| Machine model | HT-KM05 |
| Power | 11KW |
| Power supply | 220VAC/50Hz |
| Pressure | 0.5~0.8 MPa |
| Production speed | 30pcs/min |

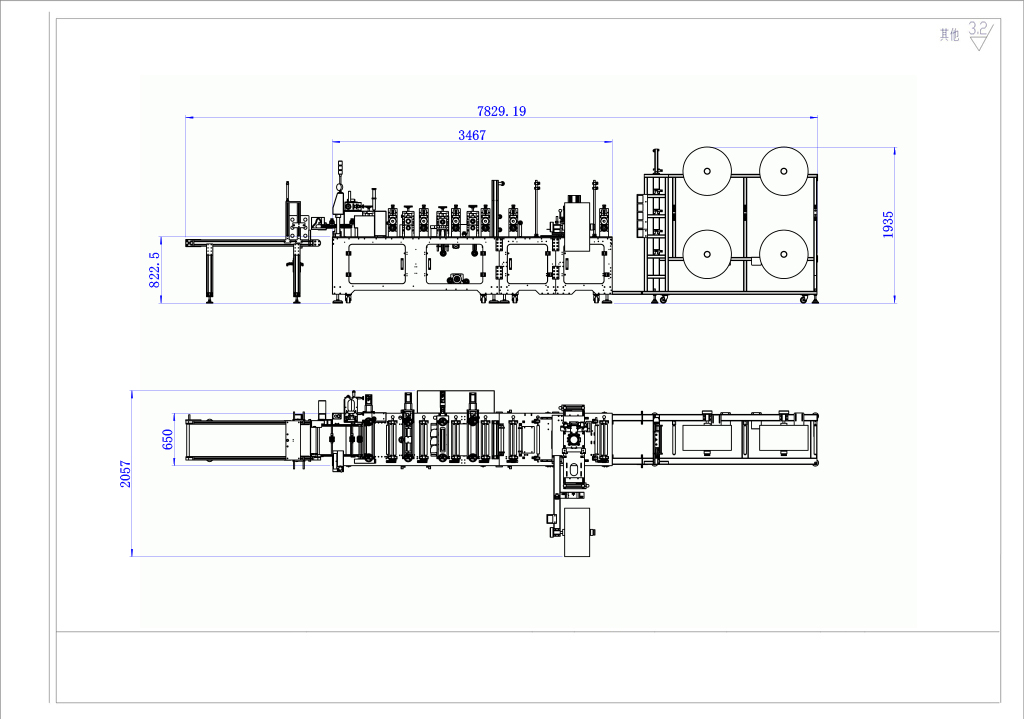

| Machine size (L×W×H mm) | 7830*2057*1950mm |
| Weight | 2.2T |
Applicable material specifications:
Meltblown fabric 25-50g, non-woven fabric 25-30g, material width: length of round mask product + 20mm.
