Flat mask machine

Full Servo Flat Mask Machine HT-KPL03

Disposable Flat Mask MachineModular design, user-friendly and easy to maintain.Integrated material rack system, more compact and space-saving.Built-in correction system ensures stable and non-deviation-prone material supply.Servo-driven all-electric system, no air required, quieter operation, reduci...

TAGS: Flat mask machine Disposable mask machine

TEL MSG

Product Introduction

Disposable Flat Mask Machine

Modular design, user-friendly and easy to maintain.

Integrated material rack system, more compact and space-saving.

Built-in correction system ensures stable and non-deviation-prone material supply.

Servo-driven all-electric system, no air required, quieter operation, reducing mask contamination.

Automatic positioning and color tracking system, meeting the production needs of masks with various personalized colors and patterns.

Stepless adjustment for adult and children's sizes, multi-functional, and easy to switch styles.

One-button intelligent operating system, simple human-machine interface, easy to learn and use. Reduces labor costs.

Backend compatible with various product packaging solutions to form a fully automated production line.


Product Parameters

ParameterValue
Speed100-120 pcs/min
Output Power12.8Kw
Power SupplyAC220V 50/60Hz
Air Pressure--
Weight1200KG
Dimensions4820×3156×1841 mm

Suitable for flat spot welding folded ear-loop face masks.

ItemGrammageWidth(mm)Outer Diameter of Raw Roll(mm)Inner Core Diameter(mm)Weight
Non-woven Fabric (Top Layer)25195Φ600Φ76.2Max 15kg
Non-woven Fabric25175Φ600Φ76.2Max 15kg
Melt-blown Fabric25175Φ600Φ76.2Max 15kg
Nose Bridge StripApprox.5Φ450Φ150-Φ330Max 15kg
Ear Loop3-5mm Flat Ear Loopcolspan="3"Coiled / Packaged in Bags

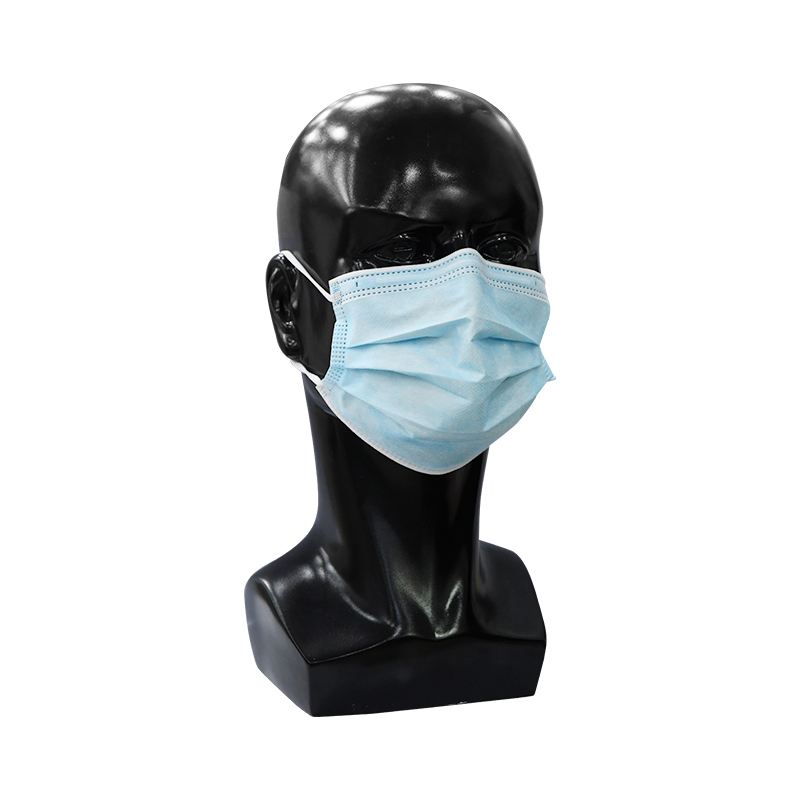

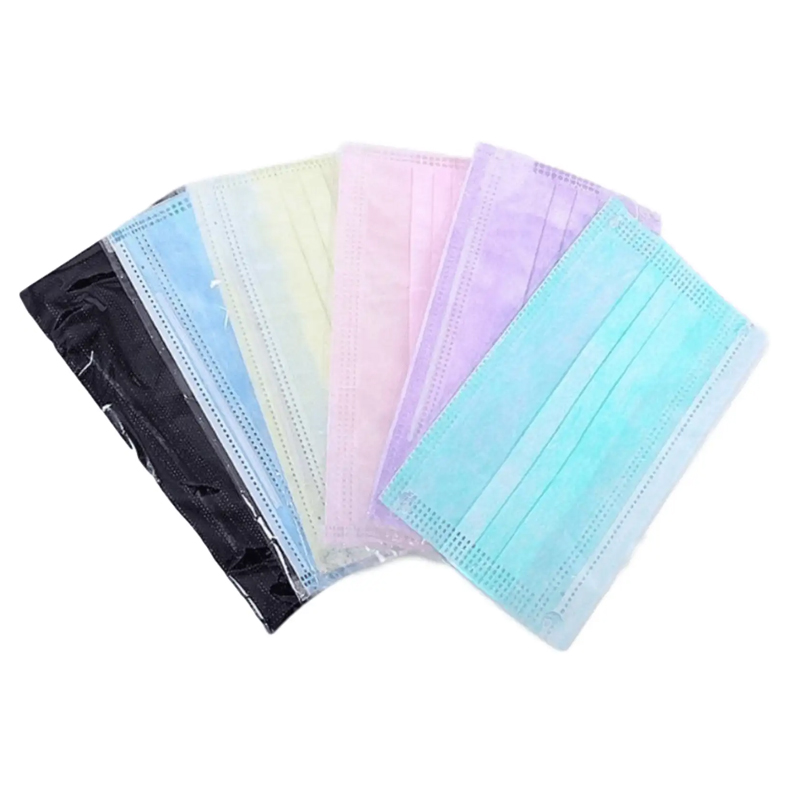

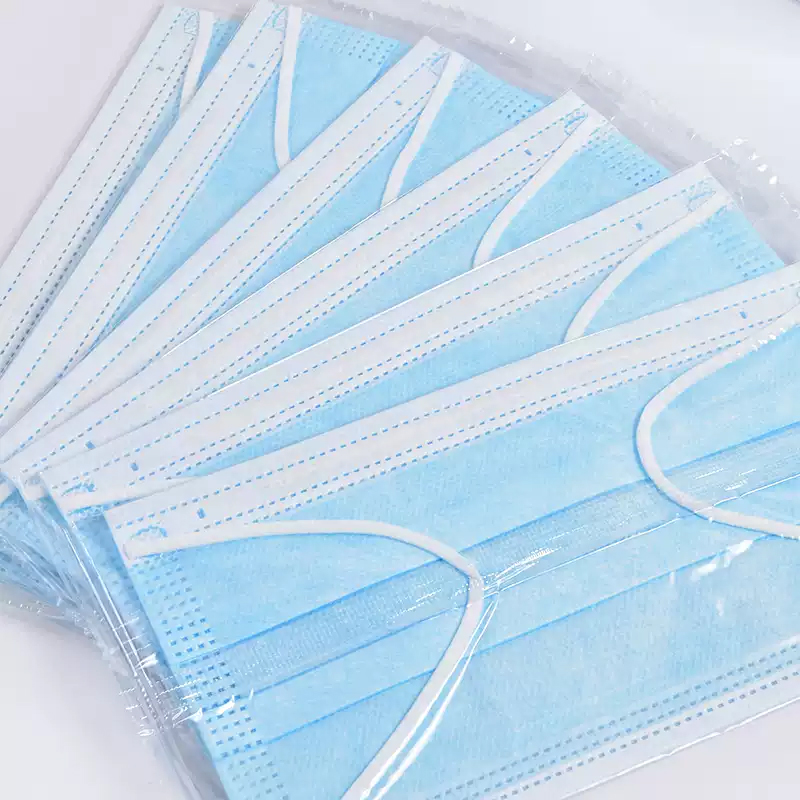

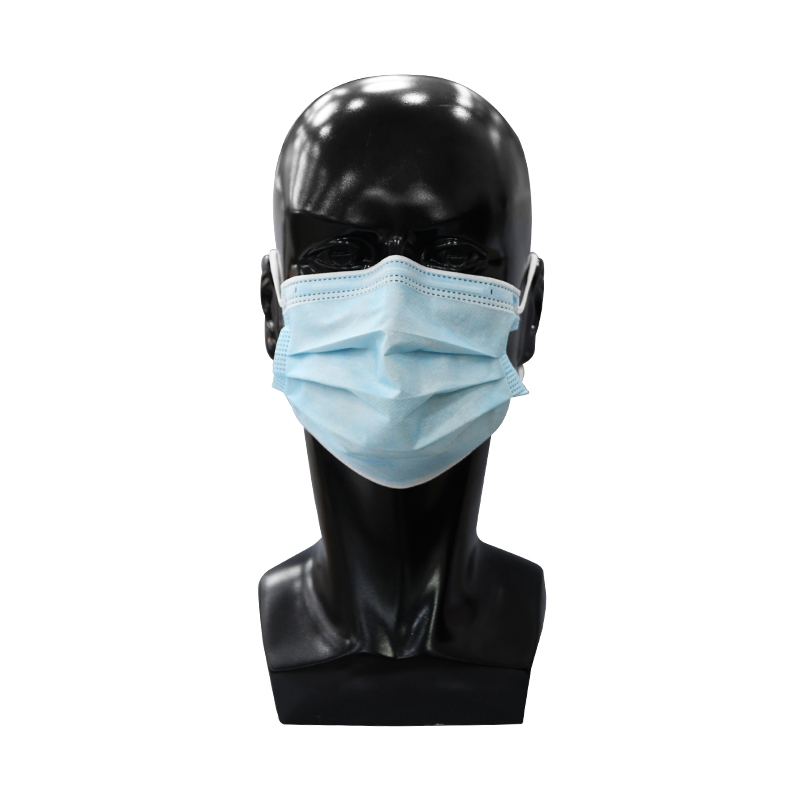

Sample photos

  • Full Servo Flat Mask Machine HT-KPL03
  • Full Servo Flat Mask Machine HT-KPL03
  • Full Servo Flat Mask Machine HT-KPL03
  • Full Servo Flat Mask Machine HT-KPL03

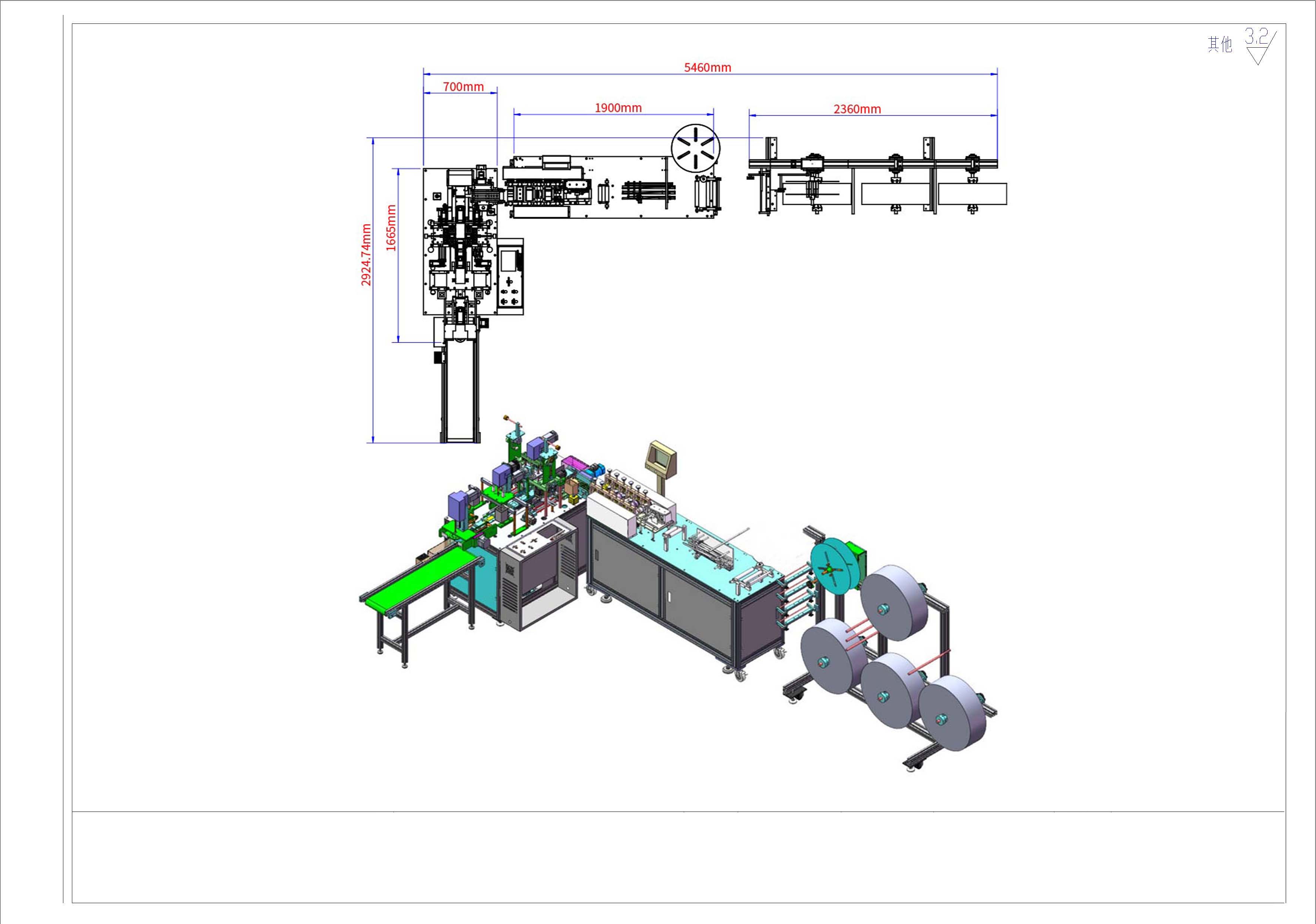

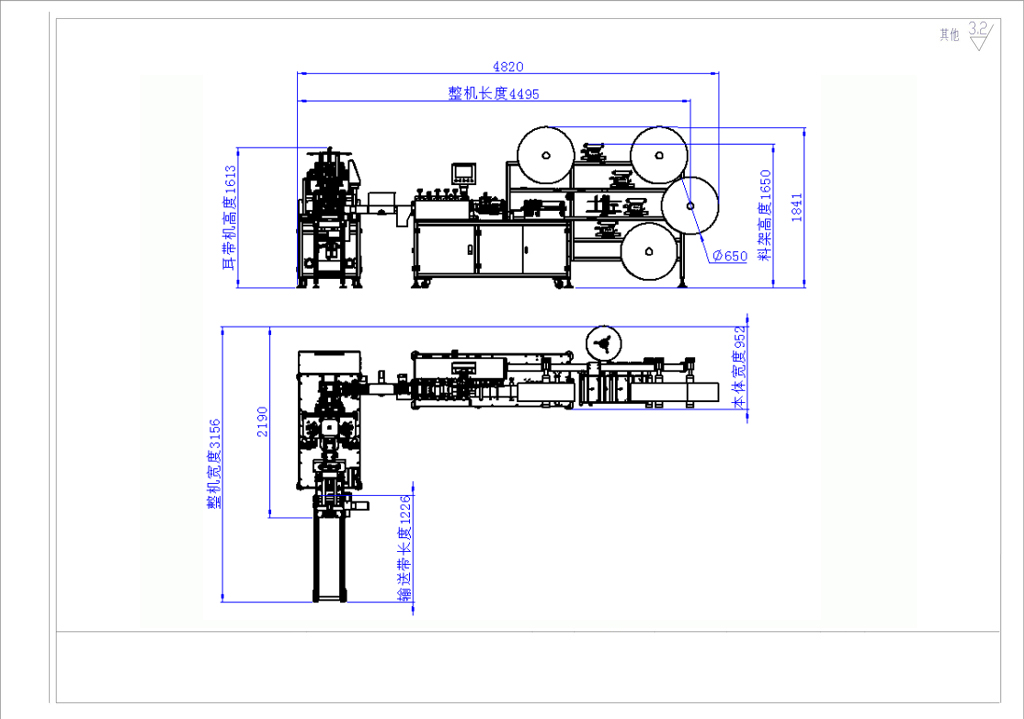

Product Drawings

Full Servo Flat Mask Machine HT-KPL03
